Overhaul Kit
Overhaul Kit
Code: A-MTK-0CKPrice 20309 € VAT incl.(167 85 € VAT excl.)0CK, DL382 - 7-speed Front-Wheel-Drive, DCT - 2013-up
overhaul kit, mechatronic-

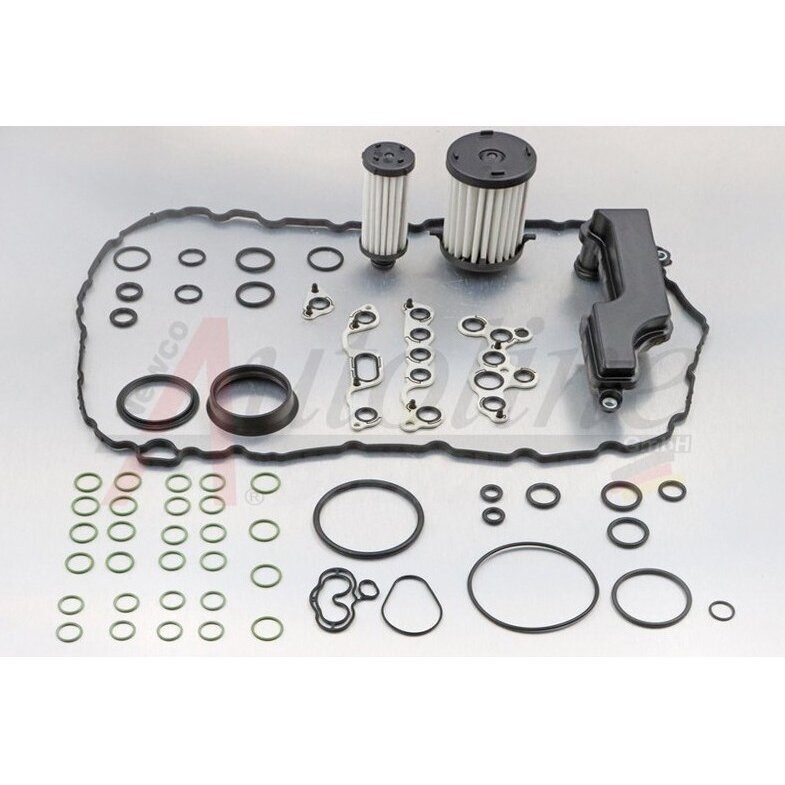

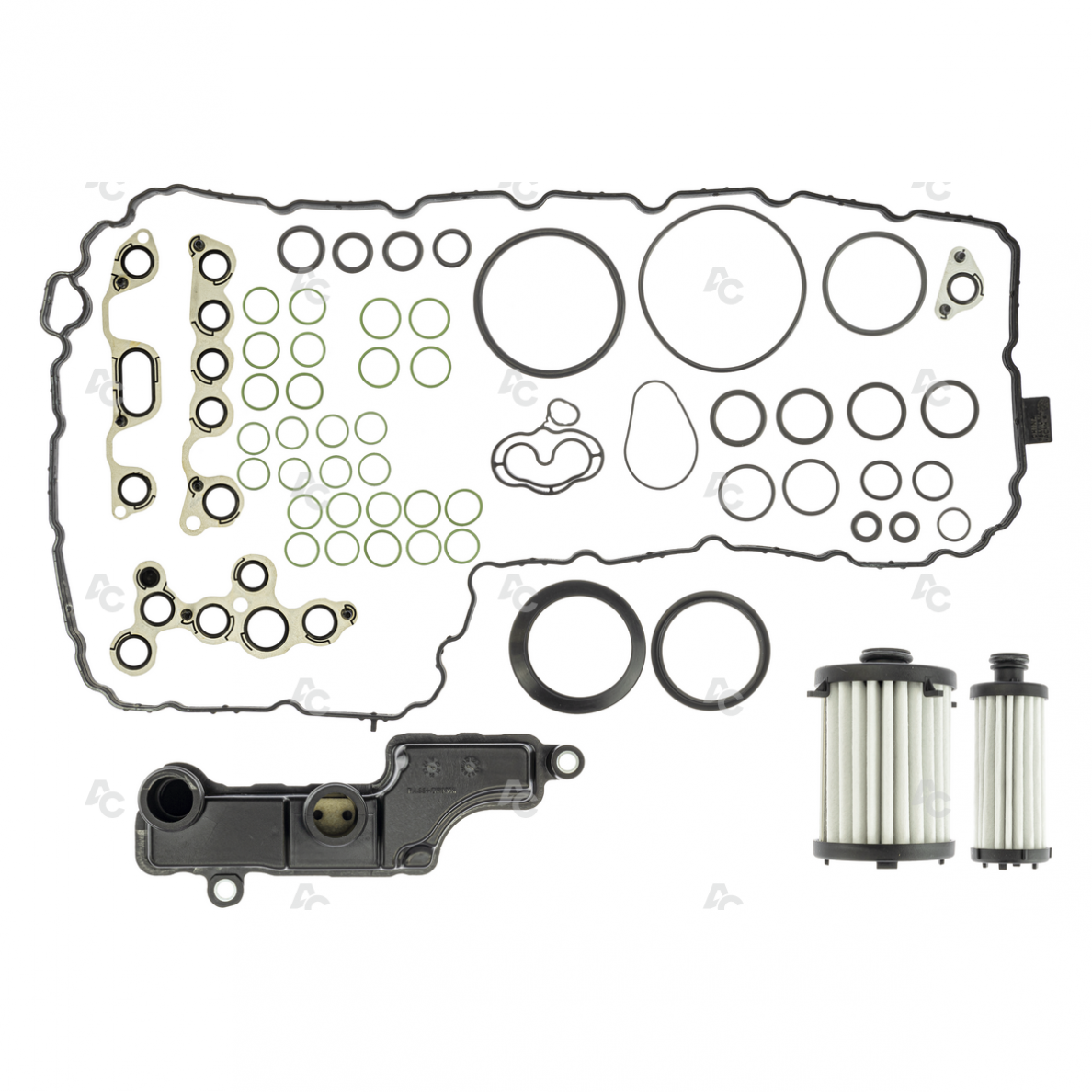

Scope of delivery:
1x sub kit, valve body A-SUK-0CK-VB with:
1x o-ring for oil tube
4x different rubber-metal gaskets
1x sub kit (2 o-rings) for small pressure filter
1x sub kit (2 o-rings) for large pressure filter
1x sub kit (2 o-rings) for suction filter1x sub kit solenoids A-SUK-0CK-SO, 26 o-rings - 4 different sizes
1x sub kit oilpump A-SUK-0CK-PP, 2x different moulded rubber seals, 1x o-ring for electric motor
1x sub kit, control unit A-SUK-0CK-CU, 2 seals/boots - upper and lower
1x sub kit, oil pan A-SUK-0CK-PA with:
1x rubber oil pan gasket for plastic oil pan 0CK 321 359 K/L/M from 25.05.2015
1x o-ring for drain/screw plug at oil pan wall (side)
1x o-ring for drain/screw plug at the bottom of oil pan 0CK 321 359 K
1x o-ring for drain/screw plug at the bottom of oil pan 0CK 321 359 D
2x smaller o-ring on outer oil pipe
1x larger o-ring on outer oil pipe
2x o-ring on inner oil pipeFilters:
1x A-OFC-0CK-LA, large pressure filter cartridge
1x A-OFC-0CK-SM, small pressure filter cartridge
1x A-OFL-0CK, plastic suction filterNOT INCLUDED ARE the gaskets for the early version of the 0CK transmissions
- paper gasket for oil pan 0CK 321 359 D which was used upto 25.05.2017 - our ref. A-OPG-0CK-PA
- moulded gasket for oil pump 0CK 325 577 B - upto 25.05.2015 - gasket has one recess only - our ref. A-MRG-0CK-PP
or supplementary kit A-SUK-0CK-EARLY with both gaskets
